Precision underground: The mass spring system at Stuttgart 21

In the construction of modern infrastructure projects in densely populated areas, one challenge often takes center stage: how to combine high performance rail transport with urban quality of life. The answer lies deep within the concrete. A current example from the Stuttgart 21 project demonstrates the installation of highly efficient elastomer bearings, a crucial step for active vibration protection.

The physics of silence: the mass spring system

To minimize vibrations and so called structure borne noise, meaning the low frequency hum transmitted through the ground into buildings, engineers rely on a mass spring system. The principle is both simple and highly effective: the track system is physically decoupled from the surrounding tunnel structure.

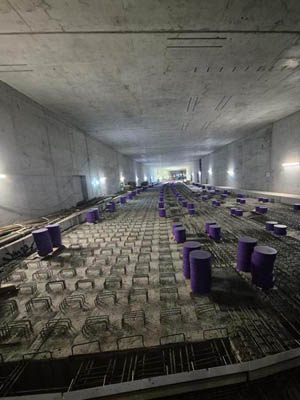

The image shows the preparation of this system. The slab was lifted using more than 170 cylinders to allow the installation of the special elastomer bearings underneath. These act as the springs on which the massive concrete track slab will later rest. This heavy slab forms the mass. When a train passes over the tracks, the elastomer bearings absorb the resulting vibrations before they can be transmitted to the tunnel structure and the surrounding foundations of the city.

Heavy duty cylinders

The mass spring system

A und K Stuttgart 21

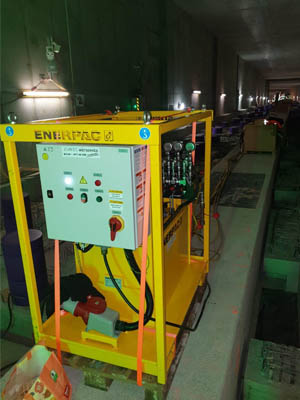

Enerpac in operation

Precision work with 170 bearings

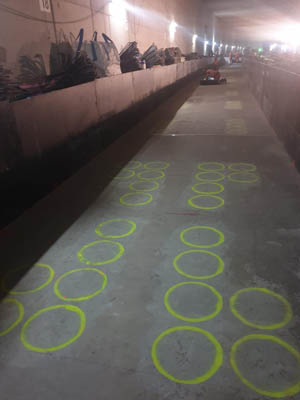

The installation of these 170 cylinders requires maximum precision. Each bearing must be positioned exactly according to plan to ensure uniform load distribution from the future concrete slab and the trains running above.


The advantages of this construction method at a glance:

• Maximum vibration protection: vibrations are absorbed directly at the point of origin
• Noise reduction: secondary airborne noise in residential and commercial spaces above is significantly reduced
• Durability: the elastomers used are highly resistant to pressure and environmental influences

Engineering excellence for the future

Measures like these form the invisible backbone of modern mobility. While passengers will later travel through the Stuttgart hub in just a few minutes, the technology beneath the tracks ensures that the city above remains undisturbed. The installation of these bearings is clear proof that technological progress and the protection of residents can go hand in hand.
This project once again demonstrates that it is often the hidden details that make the greatest difference to the quality of life in our cities.
